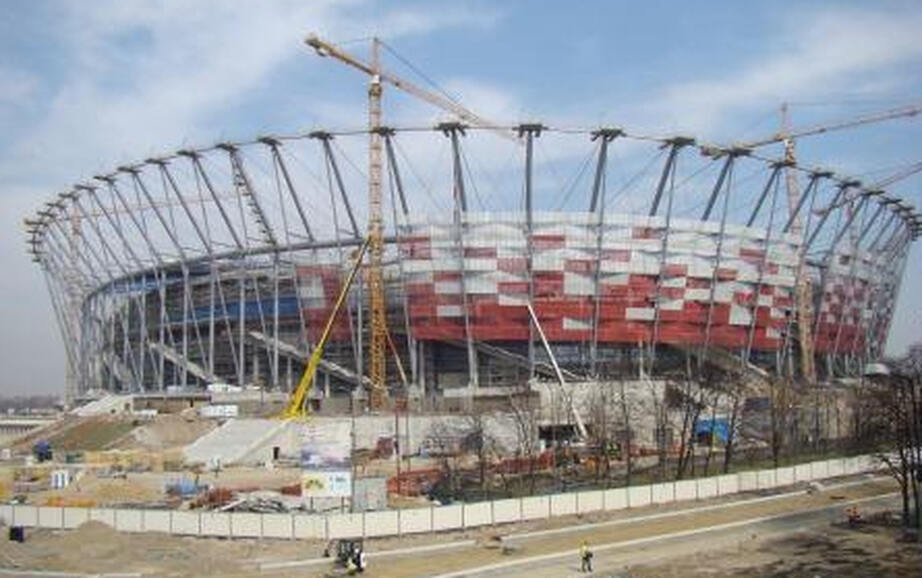

The ball rolls in the "crown" regardless of the weather
European Championship Stadium in Warsaw
The ball rolls in the "crown" regardless of the weather
European Championship Stadium in Warsaw

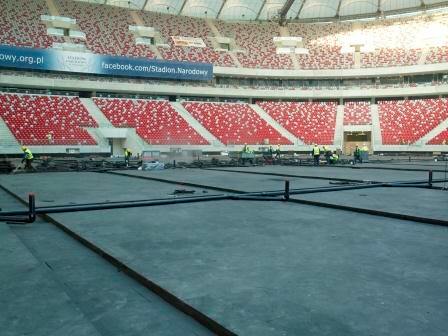

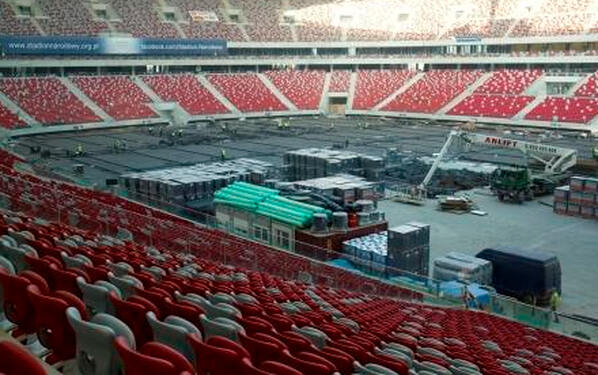

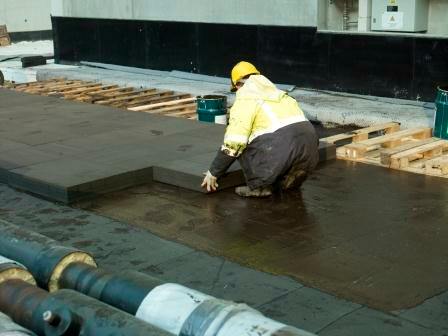

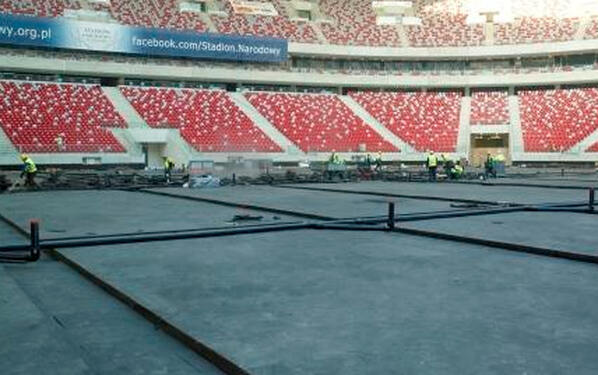

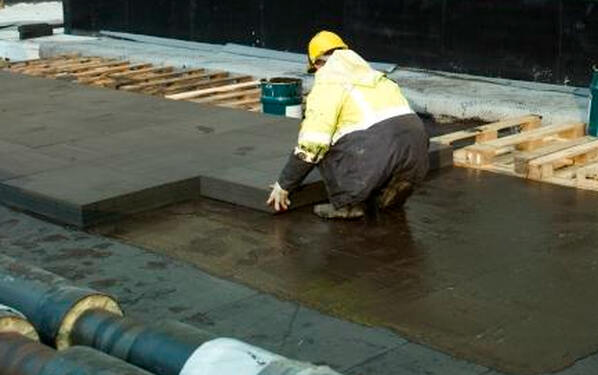

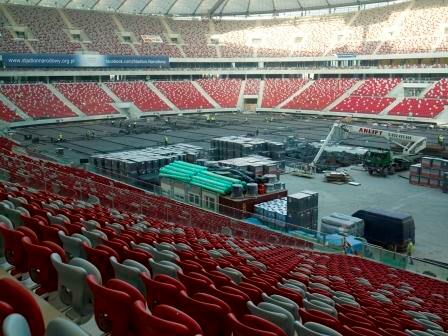

Warsaw's brand-new National Stadium is among the most modern objects of its kind in Europe. It makes 58,000 seats available for football games and just under 73,000 seats for concerts. A technical highlight is the heatable playing surface atop an unheated underground car park. A heavy-duty insulation layer had to be put in for this purpose in-between its ceiling cover and the heating elements so that the heat gets to where it is actually needed. Thanks to their outstanding thermal insulation and high level of resistance to pressure, the large-format foam glass boards from Glapor Werk Mitterteich GmbH were used for the insulation of the oval. Because of its brittleness and disinclination to adhere, foam glass has to be embedded all over in bitumen adhesive during installation. The foam glass boards were bound together using the exceptional two-component bitumen adhesive for insulation boards PCI Pecimor DK from PCI Augsburg GmbH.
Date
12.07.2012
Task
Perfectly insulating the new National Stadium
City
Warsaw
Completion
2012
Specialist advice
Maciej Sawicki
Owner
Narodowe Centrum Sportu Sp. z o.o
Company
Glapor Werk Mitterteich GmbH, Peter Berrer
Architect
gmp, Architects Meinhard von Gerkan, Volkwin Marg & Partners (conceptual design) together with JSK Architekci, Warsaw and Schlaich Bergermann & Partners, Stuttgart
